Malaysia, one of the Tiger Club Economies, is dissociating from fossil energies and has put its Ulu Jelai Power Station into operation. The hydroelectric power station successfully contributes to peak load coverage and power supply stabilisation. With its high-performance compressors, Sauer Compressors is part of this sustainable showcase project. The machines generate the compressed air forcing water out of the turbines.
The Ulu Jelai Power Station opened in 2016 and is operated by Tenaga NasionalBerhad, the only energy supplier in Malaysia and one of the largest in all of Asia. The hydroelectric power station is located about 94 miles north of the Malaysian capital Kuala Lumpur in the district of Cameron Highlands and has a maximum generating capacity of 372MW. A 460 metre long and 88 metre high dam impounds the water which is brought in by three different rivers. In case of increased energy demand, the water is released from the reservoir and directed to turbines that drive the generators to produce electrical energy.
The Ulu Jelai Power Station contains two vertically installed Francis turbines. Their particular task is to drive the generators as synchronously as possible. Otherwise, the unwanted reactive power increases up to a point where the plant’s output drops down to zero. To avoid this, the turbines are put into a shift modification mode during periods of low energy consumption.
Compressed air for free turbines

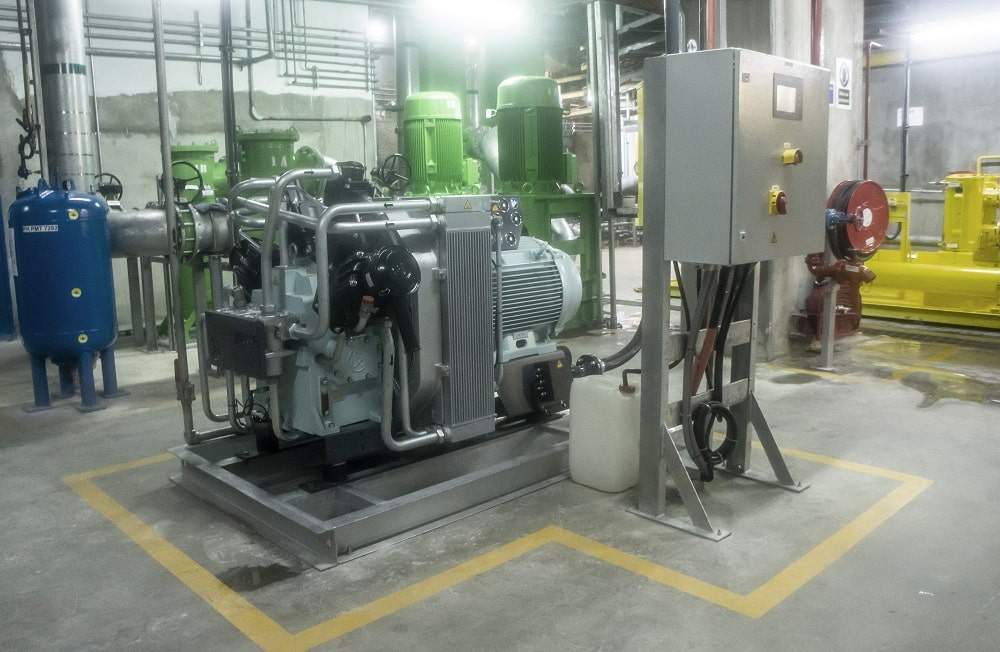

The shift modification mode requires the turbines to spin freely, therefore the water level has to sink down to a level of about one meter below the turbines. For this purpose, the water in the turbines is forced out by means of compressed air, which takes less than one minute. The power plant needs its own independent compressed air supply from compressors for this process. These compressors are usually sized to refill the air storage vessels within one hour after lowering the water level. “In the past, compressors with a pressure of up to 80bargwere commonly used, but today it is trending toward compressors with an even higher final pressure”, explains Lars Effinger, Sauer Compressors.The SAUER Breeze WP221LM Basic generates compressed air to free the turbines and works as a backup in case of a misfunction. (©Sauer Compressors)
Typhoon series compressors as the right solution
Sauer Compressors offers compressors particularly designed for this field of application, as several hydropower stations all over the world prove. Their flow rate and pressure range are tailor-made for the specific requirements of the plant operators. Sauer Compressors in Singapore supplied the Ulu Jelai Power Station with two WP3100 piston compressors from the SAUER Typhoon series. With a power of up to 55kW, the robust machines can generate a flow rate of 245m³/h at a final pressure of up to 100barg

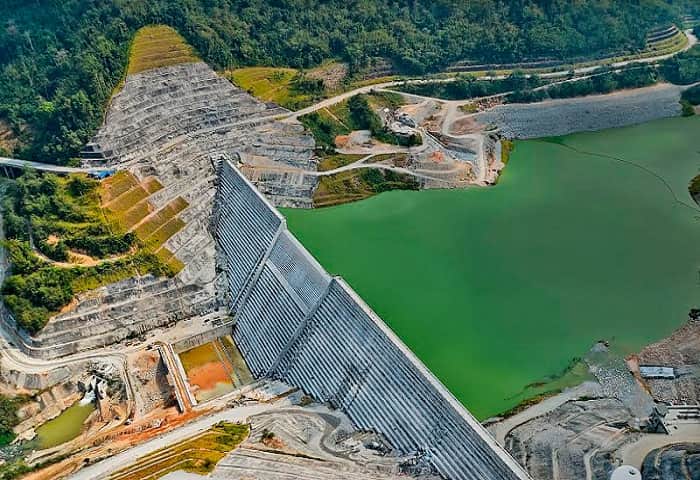

The hydropower station Ulu Jelai Power Station in Malaysia relies on Sauer Compressors’ machines. (©Sika AG)
SAUER Breeze compressors to ensure compressed air supply
In 2019, Sauer Compressors supplied the Ulu Jelai Power Station with another compressor. With the SAUER Breeze WP221LM Basic, the first of the new medium pressure models is now used in a hydropower station for industrial applications. The air-cooled compressor can produce a flow rate of 420m³/h at a final pressure of up to 40 barg. In case of a misfunction, it works as a backup to ensure a reliable dewatering of the turbines. The Breeze series is based on a newly developed compressor platform and offers both easy operation and maximum reliability.
“With this order, we have once again proven our special competence and know-how as a supplier of equipment for hydroelectric power stations”, says Lars Effinger, Sauer Compressors. “The contribution to climate protection is great. The Ulu Jelai Power Station generates 326GWh of electricity every year, which avoids around 250,000 tons of CO2 emissions compared to fossil power plants.”
